Red Optical Glint Detectors: Physics of Retroreflection & Smartphone Lens Hunting

What Is Catadioptric Retroreflection? (The Lens Law)

To understand why hidden camera detectors work, you must contrast standard reflection with retroreflection:

• Diffuse Reflection (Walls & Furniture): When light hits a painted wall or wooden table, the microscopic rough texture scatters the light randomly in all directions. Only a tiny fraction reaches your eye.
• Specular Reflection (Mirrors & Polished Metal): When light hits a flat mirror, it bounces off at an angle equal and opposite to the incoming ray ($θ_i = θ_r$). If you shine a flashlight at an angle into a mirror, the reflected beam bounces away from you across the room.

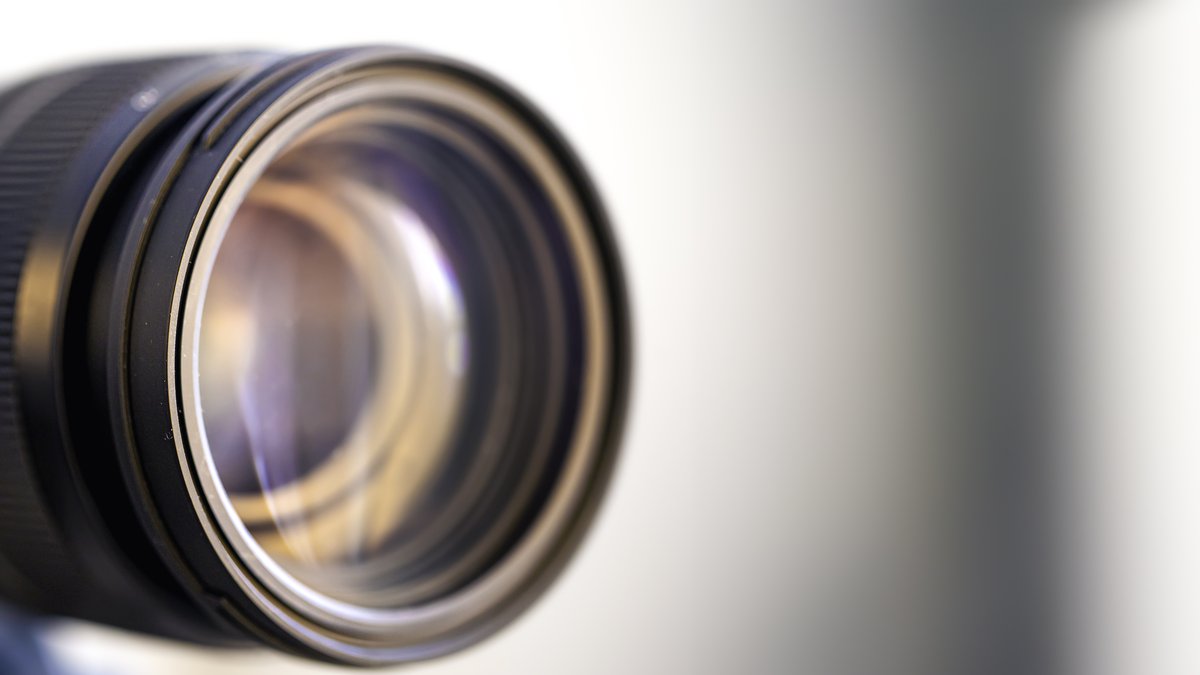

• Catadioptric Retroreflection (Camera Lenses): A camera lens is a specialized optical system designed to gather incoming light rays from various angles and focus them onto a flat focal plane (the camera sensor). When a light beam enters the front lens, the glass elements bend the light and focus it onto the reflective silicon chip. That silicon surface reflects a fraction of the beam straight back out through the same curved lenses, which re-collimate the rays into a tight beam traveling directly back toward the light source.

Because the retroreflected light is focused into a concentrated beam rather than scattered diffusely, it appears hundreds of times brighter than ordinary room surfaces. To an observer standing near the light source, the hidden camera lens appears as a razor-sharp, illuminated pinpoint flare.

Why Are Lens Finders Equipped with Red LEDs? (Spectral Physics)

If retroreflection happens with any light source, why do commercial optical lens finders feature bright red LEDs and red transparent plastic viewing windows?

1. Optical Bandpass Filtering: The red plastic window is a specialized optical filter. It blocks blue, green, and yellow wavelengths of ambient light while permitting red light (~650nm) to pass through. By filtering out room background clutter, the user's eye only registers the flashing red light returning from a retroreflective lens.
2. Human Photopic & Scotopic Eye Sensitivity: In a dimly lit environment, the human eye is remarkably sensitive to pure red contrasting points against dark backgrounds without causing pupil constriction or loss of night adaptation.
3. Anti-Reflective Coating Physics: Most consumer camera lenses feature anti-reflective (AR) coatings (such as magnesium fluoride) optimized to reduce reflections in the green-yellow band (500–550nm) where human vision peaks. These coatings are less effective at the red end of the spectrum, causing a higher percentage of red light to reflect off the internal glass-air interfaces.

Hardware Gadgets vs. Modern Smartphone Sensors

Those cheap $15 red plastic optical finders on Amazon have three major flaws:

• Extreme Eye Fatigue: You must press the tiny 1-inch plastic viewer directly to your eye and squint through it for 20 minutes to audit an entire room.
• No Recording or Evidence Capture: If you spot a lens, the plastic gadget cannot document the find or capture a video clip for police or platform complaints.
• Zero Secondary Sensors: The plastic viewer cannot detect Wi-Fi streams, cannot scan local subnets, and cannot detect magnetic EMF fields.

Transforming Your iPhone into a High-Precision Glint Detector

A modern iPhone possesses an optical configuration superior to cheap standalone finders. The rear camera lens and high-CRI quad-LED True Tone flash are situated only a few millimeters apart. This near-zero physical baseline satisfies the primary requirement for retroreflection: coaxial alignment between emitter and observer.

When you run Hidden Camera Detector App, the software:

1. Fires the LED flash at high-frequency strobe intervals.
2. Locks camera sensor exposure and boosts local micro-contrast around specular returns.
3. Displays the live feed on the expansive iPhone Retina display, allowing you to scan broad walls from a comfortable standing posture without eye strain.

The Professional Sweeping Technique (Distance, Angle & Strobe)

To execute an effective optical glint sweep, follow these three geometric rules:

• The 4-to-6 Foot Distance Rule: Maintain a distance of 4 to 6 feet (1.2 to 2 meters) from target surfaces. If you are too close (e.g., 6 inches), the small distance between your phone's flash and camera lens causes parallax error, causing the return beam to miss the camera lens. If you are 20 feet away, the light inverse-square law ($1/r^2$) weakens the return signal.
• Slow Overlapping Arcs: A pinhole camera lens has a conical acceptance angle of roughly 60° to 90°. Move your phone in slow horizontal swathes, overlapping each sweep by 30% to ensure light enters the covert lens within its acceptance cone.
• Sweep from Multiple Angles: Because pinhole lenses are often recessed behind tiny drilled holes, a direct head-on sweep might miss a lens angled downward from a smoke detector. Always sweep from directly in front, as well as 30 degrees to the left and right.

Eliminating False Positives (Screws, Sequins & Mirror Edges)

When sweeping an unfamiliar room, you will inevitably see shiny sparkles from metal screw heads, metallic sequins on throw pillows, and polished door hinges. How do you distinguish a false positive from a real spy camera lens?

Frequently Asked Questions

How do red LED spy camera finder gadgets work?

Red LED camera detectors use a ring of ultra-bright red LEDs surrounding a viewing window equipped with a red optical bandpass filter. When you hold the device to your eye and look through the window, the pulsing red light enters any nearby camera lens, reflects off the focal-plane sensor chip, and bounces directly back to your eye. The red filter blocks ambient colors, causing the hidden lens to appear as a brilliant, flashing red pinpoint of light.

What is the optical physics principle behind camera lens glint?

It is called 'catadioptric retroreflection'. In an optical system with refractive elements (curved lenses) and a reflective focal plane (the reflective silicon and copper traces of a CMOS image sensor), incoming parallel light rays are focused onto the sensor and reflected back through the lens along the exact path of entry. This retroreflected beam is thousands of times brighter than ordinary diffuse room reflections.

Why is red light used instead of white, green, or blue?

Red light (typically 650nm to 660nm) is used because human eyes have high sensitivity to red contrast against darkened backgrounds, and red optical plastic filters easily block green, blue, and yellow ambient room light. Furthermore, camera anti-reflective coatings are optimized for visible mid-spectrum light (green/cyan), meaning longer red wavelengths experience higher retroreflective returns.

Can you use your smartphone camera instead of buying a red optical finder?

Yes. A modern smartphone running Hidden Camera Detector App performs the exact same function with superior precision. The smartphone LED flashlight provides the coaxial light source, while the phone's camera sensor and real-time computer vision filters detect the high-contrast retroreflection pinpoint, eliminating the need to peer through a tiny plastic keychain lens.

How can you differentiate a real camera lens glint from a shiny screw head or mirror?

A flat shiny surface (like a metal screw head, mirror, or polished plastic) produces specular reflection governed by the law of reflection (angle of incidence equals angle of reflection). If you move your head 6 inches to the side, the specular glare disappears. In contrast, a true camera lens is a retroreflector: it continues returning a bright pinpoint of light even as you shift your viewing angle by 10 to 30 degrees.

What is the optimal distance for an optical glint sweep?

The optimal scanning distance is between 3 feet and 8 feet (1 to 2.5 meters). If you stand too close (under 1 foot), the physical offset between the flashlight emitter and the camera lens causes parallax error, missing the narrow retroreflective return beam. If you stand too far (over 15 feet), the return beam intensity drops significantly.
